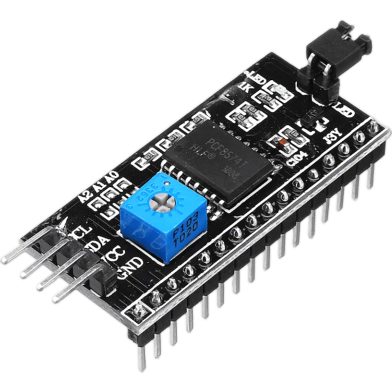

With the PCF8574T chip, the I2C LCD Adapter Module converts standard 16-pin parallel LCD interfaces into a 2-wire serial bus. It manages 16x2 or 20x4 displays using only the SDA and SCL pins. This hardware modification saves 14 I/O ports for other sensors or modules in microcontroller builds.
Key Features
- Serial Interface: PCF8574T chip reduces wiring from 16 pins to 2. Frees up GPIO for sensors or relays in Arduino builds.
- Contrast Control: Onboard 10k potentiometer manages display visibility. Manual turns adjust text clarity during voltage drops or high humidity.
- Stackable Bus: Three solder jumpers support 8 unique I2C addresses. Connect multiple screens to one microcontroller without pin conflicts.
- Universal Mounting: Header pins solder directly to 16x2 or 20x4 LCDs. Standard 5V operation fits common HD44780 screens used in local projects.
Frequently Asked Questions
What is the default I2C address for the LCD adapter?
Most units use 0x27 or 0x3F depending on the PCF8574 chip version. Solder the A0, A1, or A2 pads to modify this address for multi-device setups.
How to adjust contrast on the I2C LCD module?
Turn the blue onboard potentiometer with a small screwdriver. This physical adjustment changes the liquid crystal voltage to make characters visible against the backlight.
