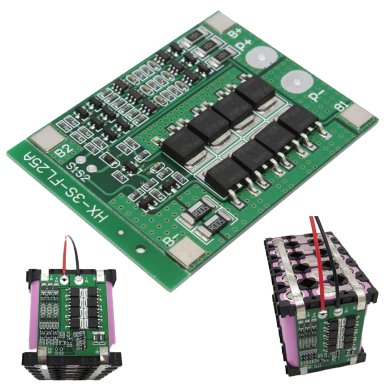

BMS Battery Protection Board 3S 25A 11.1V 12.6V 18650 AA AAA Lipo Li-ion Lithium Battery BMS Charger Protection Module Board Circuit

Summary

Specifications:

Brand new

Size: about 56mm*45mm*1.2mm

Overcharge voltage range: 4.25-4.35v 0.05v.

Over discharge voltage range: 2.3-2.7v 0.05v.

Operating current: 0 – 25A.

Operating temperature: -40 – 50℃.

Instantaneous current: 35 – 40A.

Storage condition: -40 – 80℃.

Quiescent current: less than 30uA.

Balance current: about 40 – 50mA.

Effective life: more than 30000 hours.

Internal resistance: less than 100m ohm.

Short-circuit protection: protection, delayed self recovery.

Short circuit protection: Yes, delayed self recovery

Features:

High Quality

Short circuit protection.

Overcharge protection.

Over-discharge protection.

Overcurrent protection.

Can be applied to various 3.7V lithium core.

Compact size and lightweight.

Fine workmanship and durable.

Ensure the security of battery pack.

Stable performance.

Fine workmanship and durable.

Suitable for:

10.8V (Rated voltage of polymer battery)

11.1V (18650 or 3.7V lithium battery rated voltage)

12.6V (Lithium battery full charge voltage)

Welding point Deion:

B : Connect to the battery positive

B- : Connect to the battery negative

BM: Connect to the battery 1 and battery 2 joining point

P : Connect to the charge / discharge side of the positive terminal

P- : Connect to the charge / discharge side of the negative terminal

Precautions:

Strictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B ), Do not deliberately short circuit.

After the line is connected, Need to charge first, then have output.

When the battery is connected in series with 3 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use.

Do not mix the good battery and the battery.

The capacity of the battery internal resistance is closer will be better.

Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
