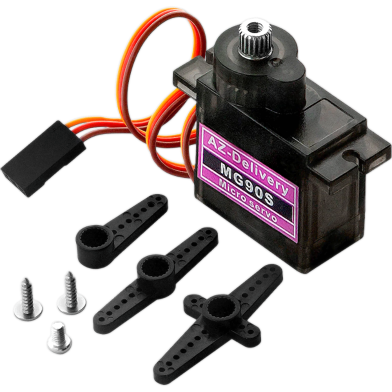

Micro Metal Servo MG90s

Name: Micro Metal Servo MG90s : Non-Brand | Rokomari.com
Brand: Non-Brand
Price: 300.0 BDT
Availability: InStock

Brand: Non-Brand

Category: Electrical Circuit & Parts

TK. 300

Highlights:

Country of Origin: China
Number of Pieces: 1 Pcs

বই ও পণ্যে ৭০% পর্যন্ত ছাড়! বছরের সেরা ডিল, রকমারি ক্লিয়ারেন্স সেল, ২০২৫

Add to Cart

Add to comparison

7 Days Happy Return

Cash On Delivery

Specification
Title:	Micro Metal Servo MG90s
Brand:	Non-Brand
Country of Origin	China
Number of Pieces	1 Pcs

Summary

This is the High-resolution, Accurate positioning Micro Metal Servo MG90s is Fast control response and Constant torque throughout the servo travel ranger. It has Excellent holding power.

Wire Deion
RED – Positive
Brown – Negative
Orange – Signal

General Specification of Metal Servo MG90s

Model MG90S
Weight(gm) 13
Operating Voltage (VDC) 4.8 ~ 6.6
Operating Speed @4.8V 0.10sec/60°
Operating Speed @6.6V 0.08sec/60°
Stall Torque @ 4.8V (Kg-Cm) 1.8
Stall Torque @6.6V (Kg-Cm) 2.2
Operating Temperature (°C) 0 to 55
Dead Band Width ( μs) 1
Rotational Degree 180º
Servo Plug JR
Cable Length (cm) 25
Length (mm) 12.4
Width (mm) 22.8
Height (mm) 32.5
Shipment Weight 0.017 kg
Shipment Dimensions 8 × 6 × 3 cm

Package Includes :

1 x Towerpro MG90S Mini Digital 180-Degree Servo

Set of Horns

One Point
Two Point
Four Point
1 x Set of Screws
